The space of 40 sq.m. is located on the second floor of a modern residential complex. The absence of internal load-bearing partitions and good geometry make it possible to offer several options for functional zoning of space.
planning concept
Option 1

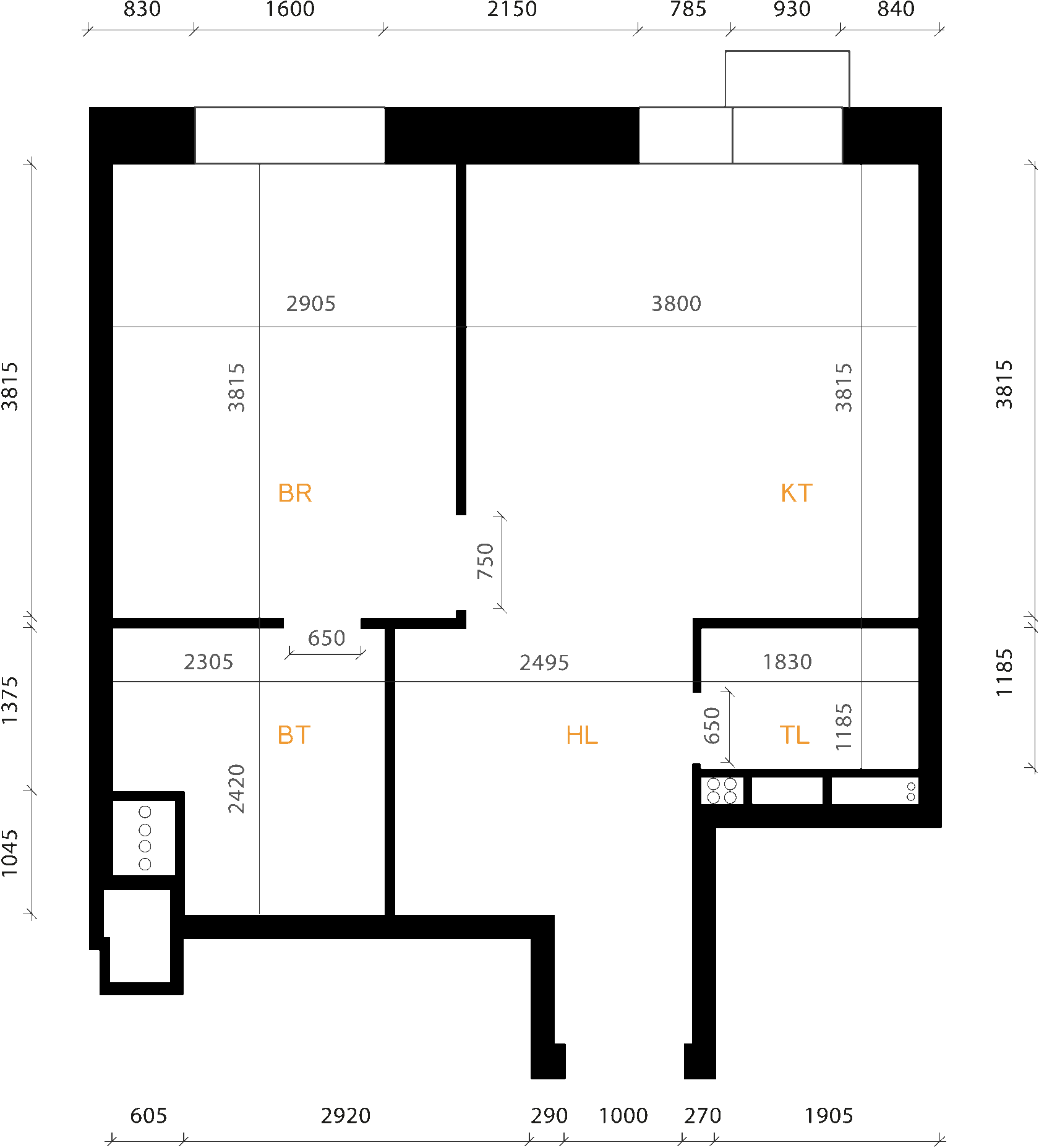

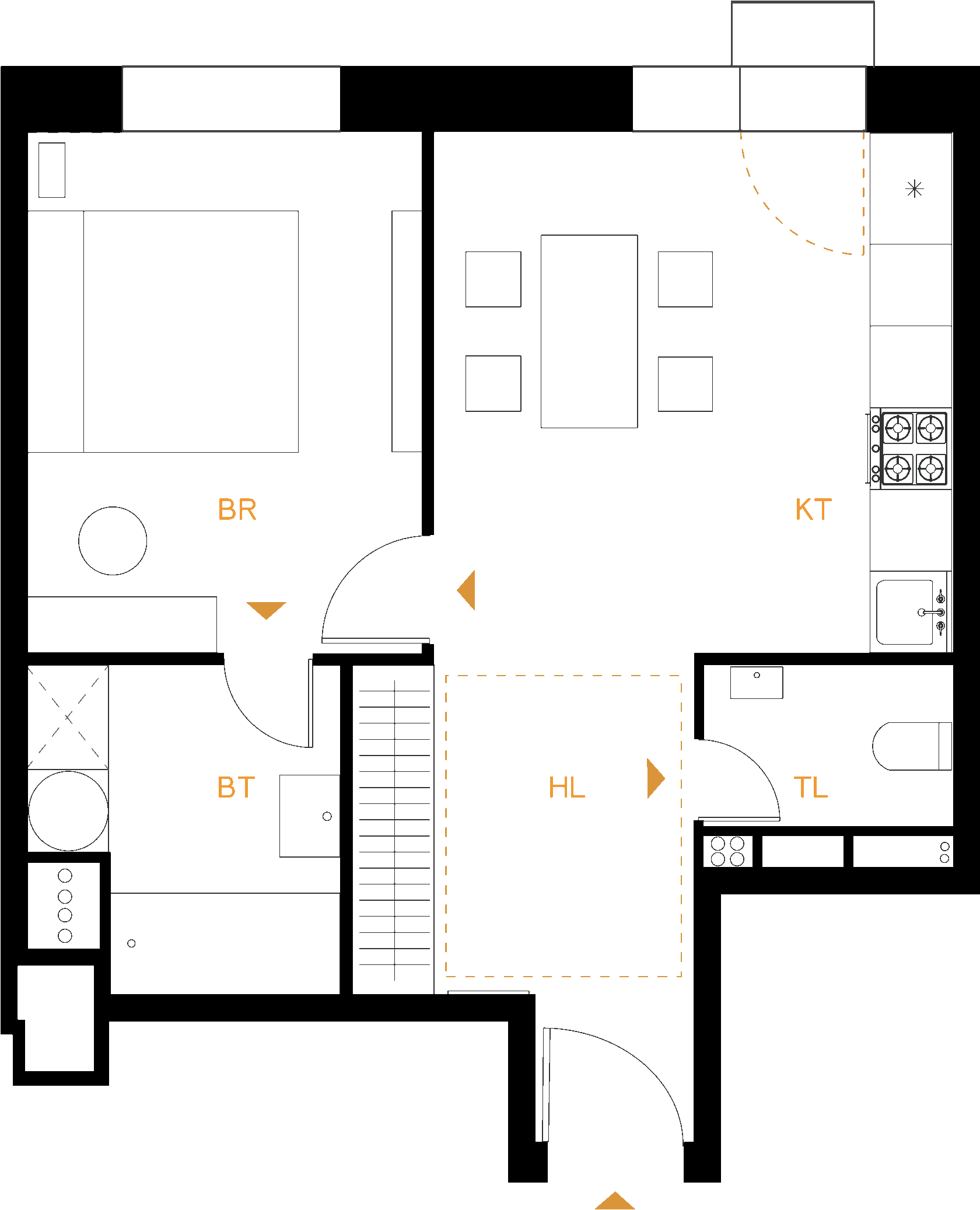

planning concept with two bathrooms. A compact bathroom in the hallway area leaves space for a spacious kitchen. The private area contains a bedroom, a workspace and a bathroom with a laundry block.
planning concept
Option 1
room schedule
HL KT BR BT tl
hall kitchen bedroom bathroom toilet
7,2 14,4 11,6 4,9 2
sq.m sq.m sq.m sq.m sq.m
planning concept
Option 1
planning concept
Option 2

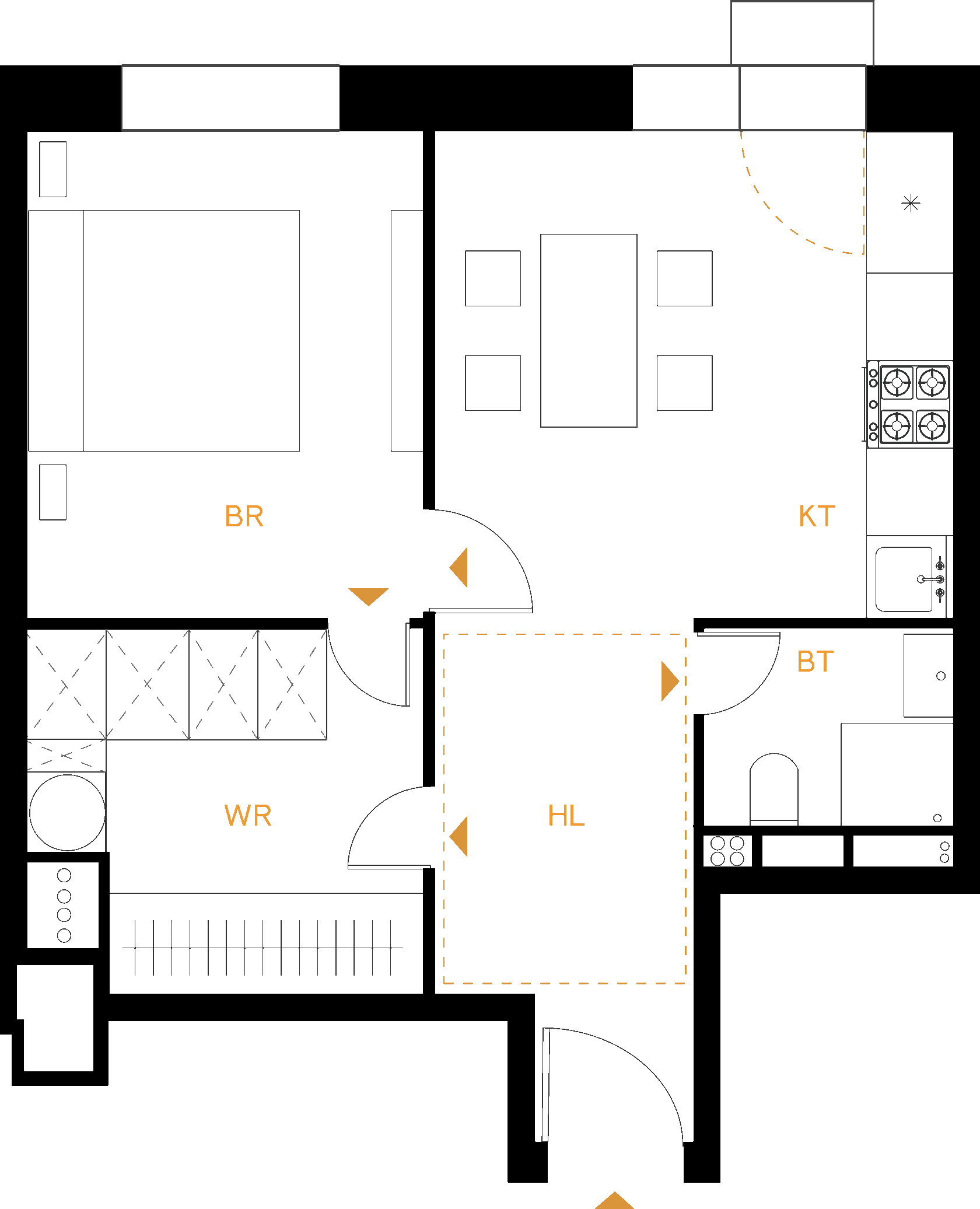

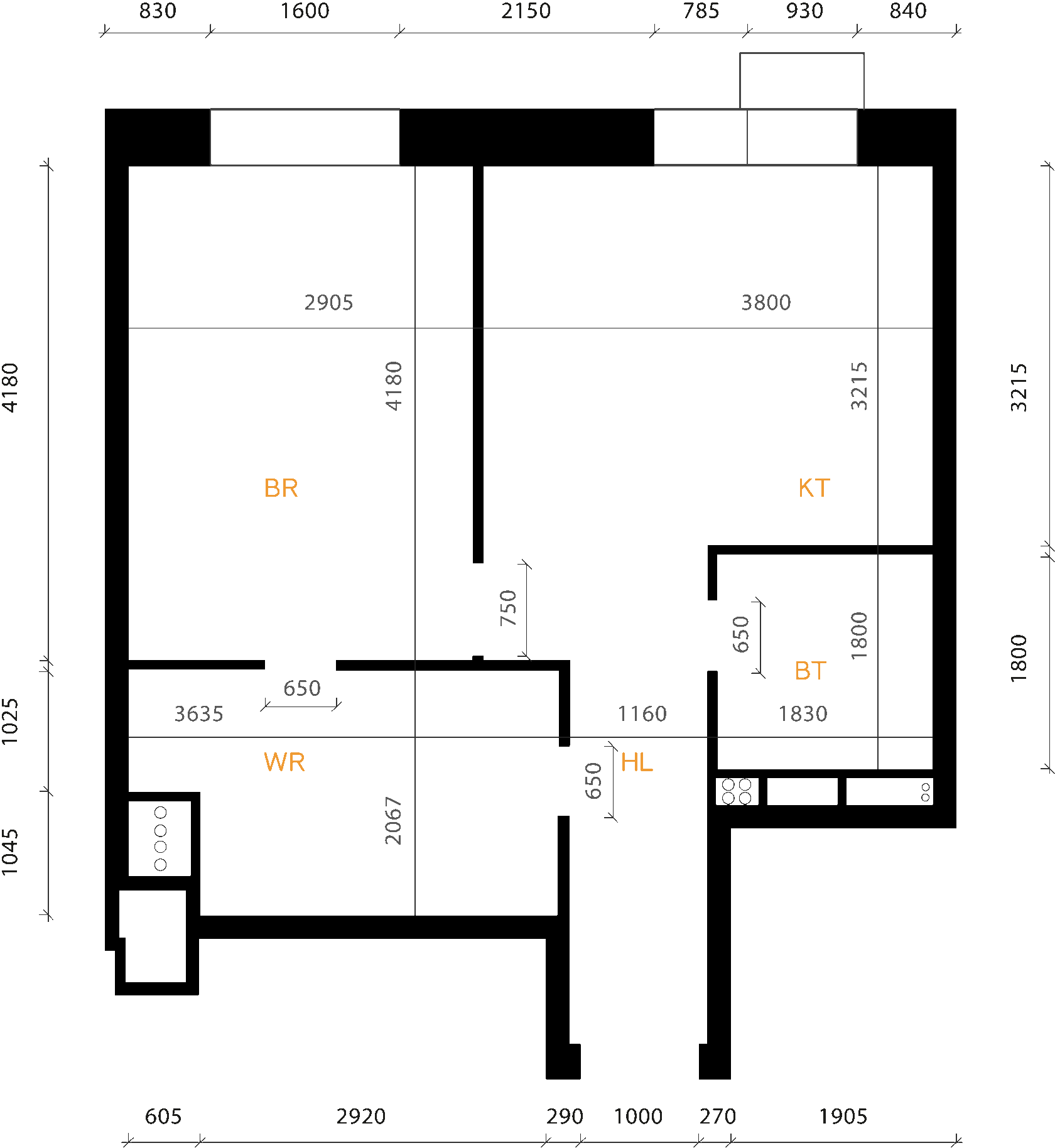

The second planning solution focuses on storage systems - a dressing room with two entrances: from the hallway and from the bedroom. There is also a laundry block located there. The solution also provides for a small hallway area and a bathroom with a shower.
planning concept
Option 2
room schedule
HL KT BR BT WR
hall kitchen bedroom bathroom wardrobe
6,3 13,3 10,7 2,7 7
sq.m sq.m sq.m sq.m sq.m
planning concept
Option 2
planning concept

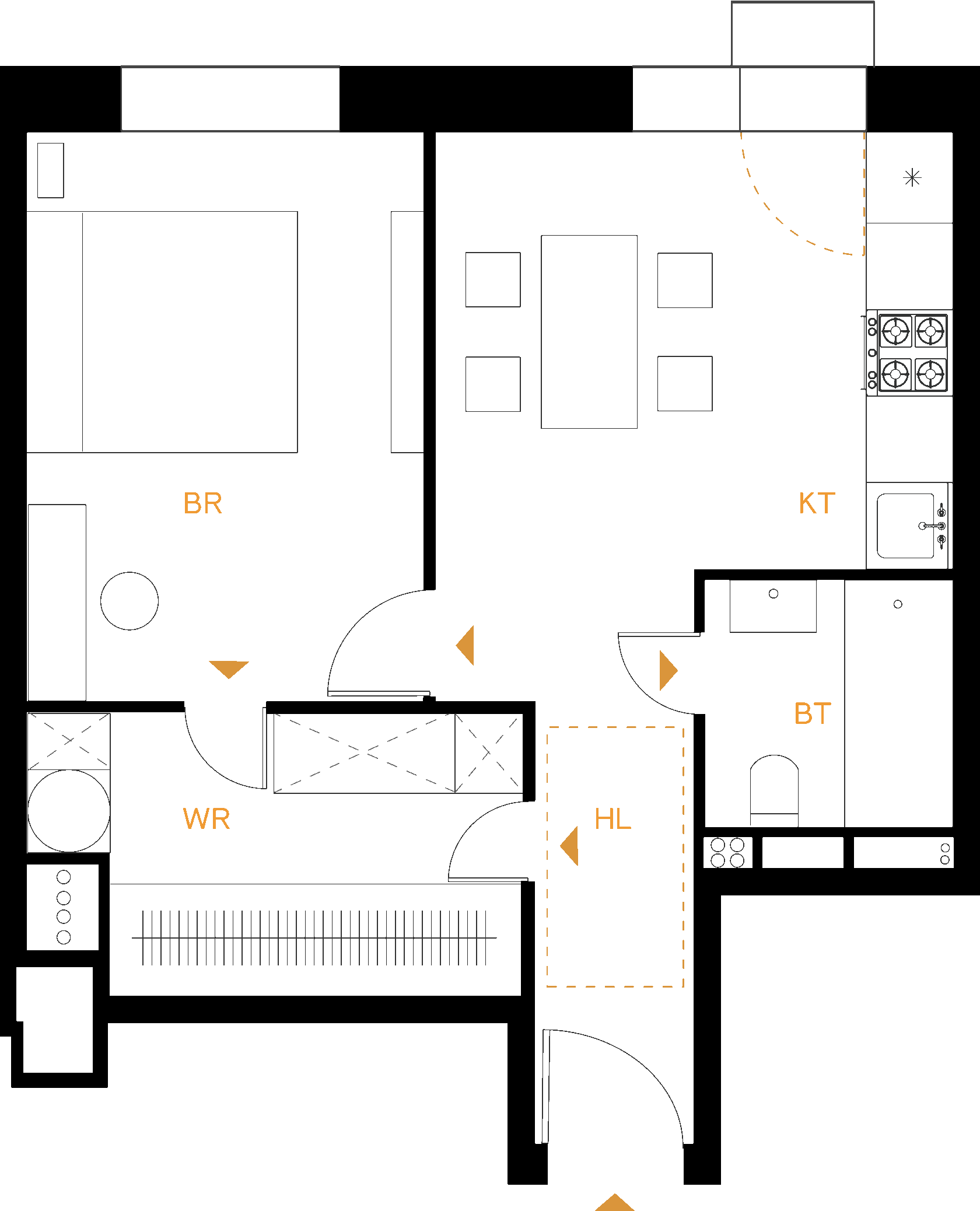

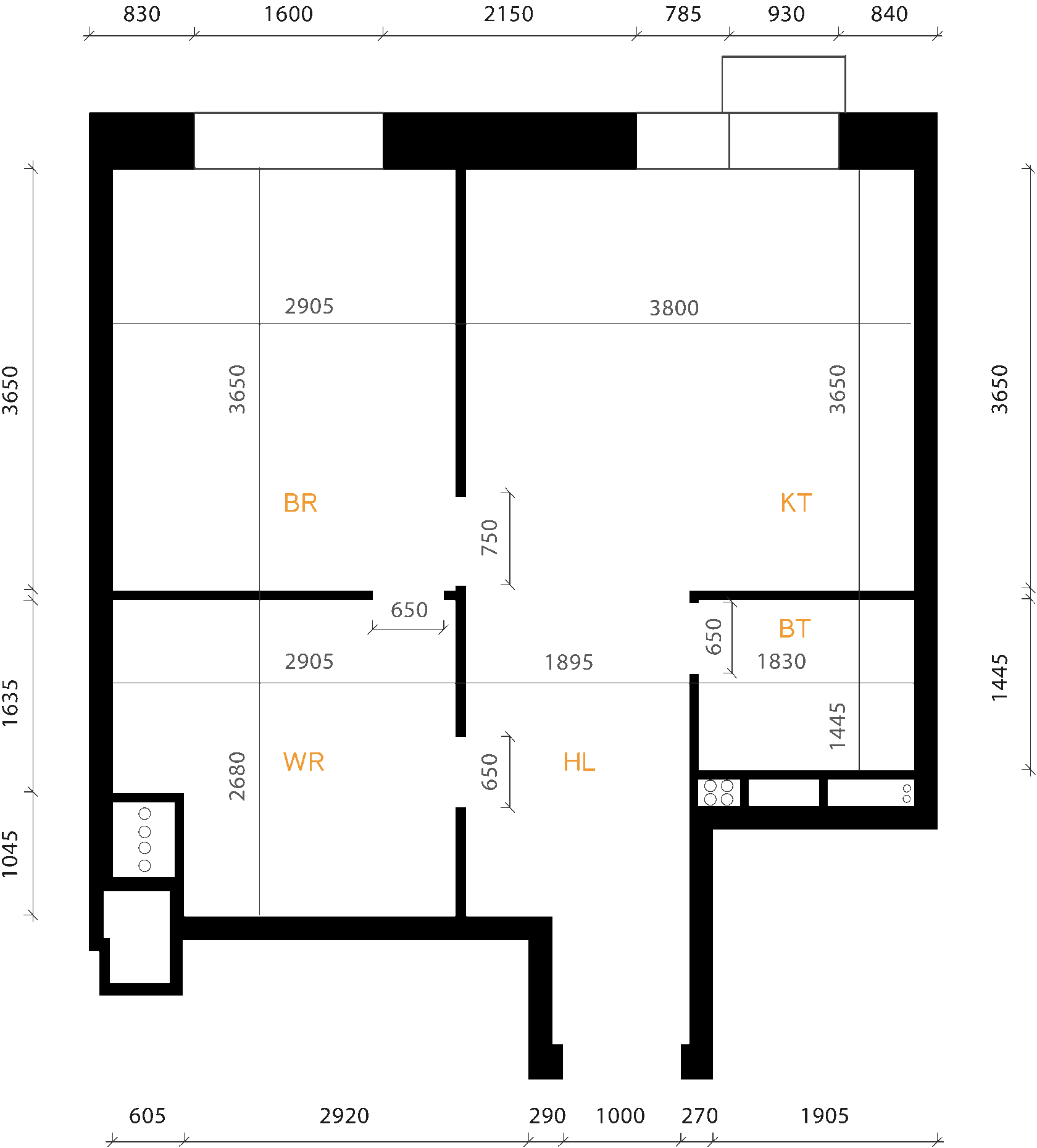

Option 3
The third planning solution also allows you to place a dressing room with a laundry room. This option provides a workplace in a private area, and there is an opportunity to place a bathtub in the bathroom.
